Ceramic fiber blankets

STD, HP, HA, HZ all grades of ceramic fiber blankets Density: 4, 6, 8 lbs./cu. ft. (64, 96, 128 kg/m3) Thickness: 1/2", 1", 1-1/2", 2" (12.5mm, 25mm, 38mm, 50mm) Width: 24" and 48" (610mm and 1220mm)

Contact   |   Link To Product   |   More Products By This Company

Images

Click on an image to see larger size image ...

Specifications

Details

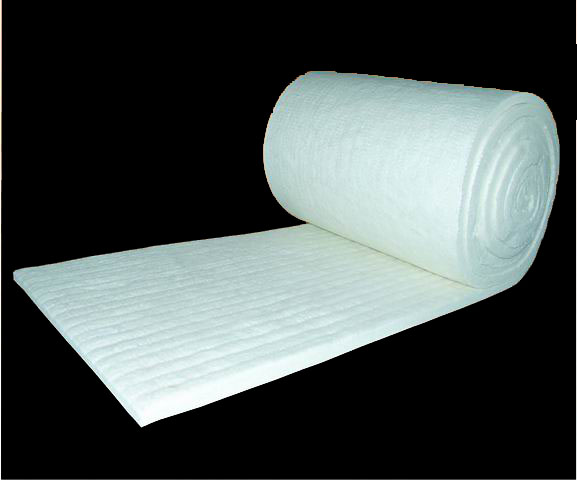

CERAMIC FIBER BLANKETS

NR blankets are made from selected high quality spun ceramic fiber, double sides mechanically needling makes it high strength and surface integrity

NR blankets have a good character of superior insulating performance, light weight, flexibility, resilience and chemical resistance, low thermal conductivity, low heat storage,

Available Density and Size

Density: 4, 6, 8 lbs./cu. ft. (64, 96, 128 kg/m3)
Thickness: 1/2", 1", 1-1/2", 2" (12.5mm, 25mm, 38mm, 50mm)
Width: 24" and 48" (610mm and 1220mm)
Packaging: In plastic bags and then in cartons


Characteristics
Double needled blanket
Low density
Low thermal conductivity
Shorter heat up and cool down time
Resilience and resistance to thermal shock
Flexible and easy to cut and install
Contain no organic binder
Asbestos free

TYPICAL APPLICATIONS

Flexible high temperature pipe insulation and casting mold insulation.
Repair, insulation and linings for furnaces, kilns, ovens, generators, reformers, boilers,
High temperature pipe insulation, duct and turbine insulation.
Forging Furnaces linings.
High-temperature seals and gasketing, furnace door seals
Glass furnace crown insulation.
Heat processing equipments
Car bottom furnace lining insulation
Fire protective insulation or linings
Back-up installation

Ceramic fiber blankets products data sheet :
STD HP HA HZ
Classification Temp(℃) 1260 1260 1350 1430
Working Temp.(℃) 1050 1100 1200 1350
Color white white white white
Bulk Density(kg/m3) 64/96/128/160 64/96/128/160 64/96/128/160 64/96/128/160

Thermal Conductivity (W/m.k) ----- Density 128kg/m3)
800℃ 0.15 0.176 - -
1000℃ 0.17 0.22 0.18 -
1200℃ - - 0.26 0.31

Thermal Shrinkage 24hrs (Density 128kg/m3) (%)
1150 ℃ 1250℃ 1300℃ 1350℃
3 3 3.5 3.5


Chemical Composition(%)
A2O3 45-47 45-46 53-55 38-54
A2O3 +SiO2 98.5 99 99 82-90
ZrO2 - - - 10-18
Fe2O3 <0.4 < 0.3 <0.2 <0.2
K2O+Na2O < 0.3 < 0.3 < 0.2 < 0.2
CaO+MgO <0.2 <0.2 <0.2 <0.2
Standard Dimensions mm 3600x610x50 /7200x610x25/ 14400x610x12.5 /Non-Standard Available on request

Data are average results of test conducted under standard procedures and are subject to variation. Results should not be used for specification purposes.
