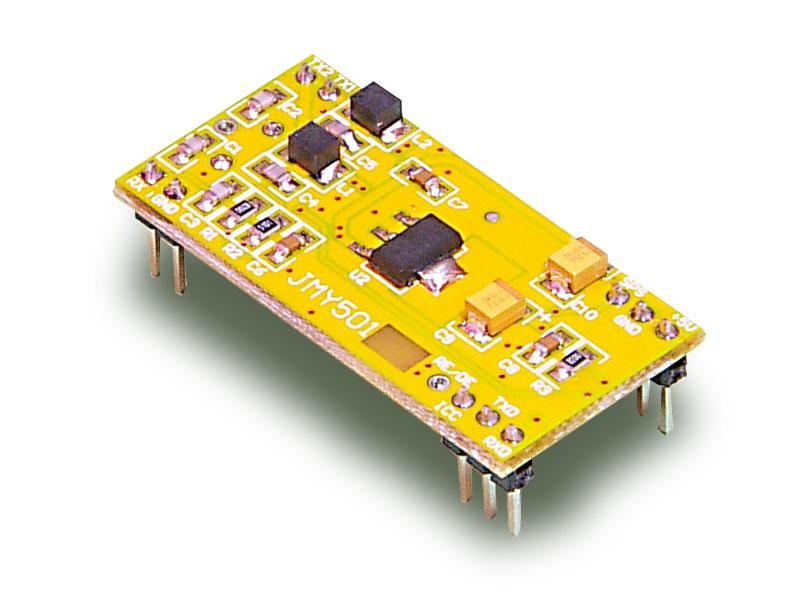

JMY501H RFID Reader Module

JMY501H is the 13.56MHZ RFID reader/writer module with UART and IIC interface. Support ISO14443A, ISo14443B and ISO15693. The module and antenna is seperated. We offer OEM service.

Contact   |   Link To Product   |   More Products By This Company

Images

Click on an image to see larger size image ...

Specifications

Details

JMY501H is a RFID read/write module with an UART and IIC serial port. The module supports IC cards compliant with ISO/IEC14443A, ISO/IEC14443B and ISO/IEC15693. The module has various functions. User operates the module via simple commands. The module has excellent performance and stability. The antenna is off board. Developed by Jinmuyu, We offer OEM service.
PCD model: NXP CL RC632
Working frequency: 13.56MHz
Card supported: Mifare 1K/4K, FM11RF08, Ultra Light, DesFire, Mifare ProX, SR176, SRI512, SRI1K, SRI2K, SRI4K, SRIX4K, T=CL smart cards(both ISO14443A & ISO14443B) , TI TagIt, I.Code SLI, ST LRI and other ISO15693 tags
Anti collision ability: Full function anti collision; be able to process multi-cards; be able to set operate single card only
Auto detecting card: Supported, default OFF
EEPROM: 512 Bytes
Power supply: DC 5V (±0.5V)
Interface: IIC & UART (selected by SPS pin, recommend to use IIC)
Communication rate: IIC-400Kbps; UART-19.2Kbps/115.2Kbps
Max. command length: 254 Bytes
Interface level: 3.3V (TTL level; 5V tolerance)
Power consumption: 70mA
Reading range: 100mm (depending on card and antenna design)
Dimension: 21mm * 42mm
Package: DIP32
Weight: About 15g
ISP: Supported
Operating temperature: -25 to +85 °C
Storage temperature: -40 to +125 °C
RoHS: Supported
