Flotation Machine

all kinds of models;can be customized;offering on-the-spot technical support---machine test and installation. top-quality and good service will make us become your first choice.we are sure to offer you the first-class ore dressing equipment.

Contact   |   Link To Product   |   More Products By This Company

Images

Click on an image to see larger size image ...

Specifications

Details

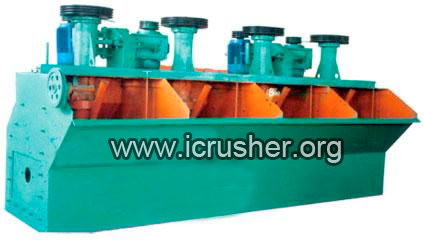

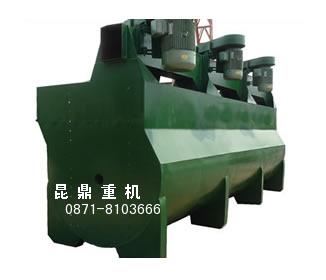

Flotation machine
Kunding Flotation machine can achieve specific separations from complex ores, so it is applied to rough processing and concentration. It is widely used in reverse flotation of non-ferrous metal such as copper, lead, zinc, nickel, molybdenum, ferrous metal and nonmetallic materials.

Operating principle
The impeller of SF Flotation Machine rotates through V-belts connected with motor. After the mixture of pulp and foaming agent entering the first cell of the bank, under the negtive pressure and centrifugal force produced by the rotating impeller, they will be blended with air together. Driven by impeller, the complex enters the mineralizing area, where the air bladder will be broken to contact the mineral particles fully and become mineralized froth. Moving to the separating area, the mineralized froth will then be scraped by the rolling scraper, while the remained particles will be mixed, mineralized and seperated again. The pulp at the bottom of the tank will flow into the second cell repeating the process in the first cell, and then into the third cell. This process will be repeated until the gangue is discharged to the tailing launder.

Features and advantages
1.self-aeration
2.efficient pulp cycle
3.stable operation
4.energy-saving

Tags

flotation machine, flotating equipment, direct flotation, reverse flotation, ore dresser, mineral dresser, mining machinery, metallurgy machinery, industrial supplier, heavy equipment
