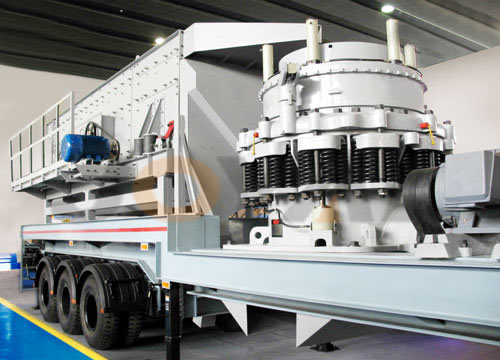

JOYAL Y3S Series Mobile Cone Crusher

Mobile Cone Crusher feature less pollution save energy long service life low cost strong construction simple structure

Contact   |   Link To Product   |   More Products By This Company

Images

Click on an image to see larger size image ...

Specifications

Details

The Mobile Crusher is not limited by the crushing place, and reduces high material transportation cost. The Mobile Crusher can crush materials on site or work nearly. The Mobile Crusher is widely used in the industry of mining, metallurgy, building materials, traffic, and water conservancy facilities and so on.

Features Of Mobile Crusher in my company Shanghai Joyal Mining Machinery Co., Ltd.:

1. Move easily.It can go to the crushing place where is difficult to go. It not only can drive on the smooth road, but also on the bumpy road.
2. Compact structure and simple operation. Integrative equipment group with trailer saves the working area. With generator, motor and control box, it can work in any place even there is no electricity. With supporting equipment on the trailer, so no need to install the machine.
3. Save the cost. Crush the materials on site, reduce the transportation cost.
4. Wide application. The crushing plant can work as independent unit; work with other unit to do primary and secondary crushing; work with two other units to do primary, secondary, and fine crushing; working as a production line with the screening equipment (firstly screening then crushing, or firstly crushing then screening.)
5. Good performance and convenient maintenance. The crushers, vibrating feeders, and vibrating screens are from Shanghai Joyal Heavy Industry, so the quality is reliable and stable. Material is delivered by belt conveyors, which is simple in operation, easy maintenance, and low investment.
6. Flexible configuration. Can provide suitable portable crushing plant based on customers working site, material typical, and particle shape requirement. Such as single unit, combined units, self-load belt conveyor unit and so on.

Main Specifications Of Mobile Cone Crusher:

Model Vibrating screen Cone crusher Belt conveyor Capacity (t/h) Power (kw) Max Dimension
L×W×H (mm) Total
weight
(t)
Y3S1548Y900 3YZS1548 PYB900 B500×7M 50-200 75 13000×
2800×
6400 43
Y3S1848S36 3YZS1848 ZYS36 B650×7M 70-300 99-134 13000×
3000×
6700 47
Y3S1860S51 3YZS1860 ZYS51 B650×8M 120-400 212.5-220.5 14000×
3000×
6700 53
Y3S2160H220 3YZS2160 HP220 B800×8M 140-450 257.5-264.5 14000×
3200×
6700 58

Tags

mobile cone crusher, mobile crusher, portable crusher
