QuickSwitch 4185 Fiber Optic SC Duplex, Multimode Switch Plus Converter

QuickSwitch® 4185 Fiber Optic SC Duplex, Multimode Switch Plus Converter allows accessing two separate fiber 100 Base FX ports (A, B) from a 100 Base TX Fast Ethernet port (Common). Fiber optic / twisted pair copper conversion is built in.

Contact   |   Link To Product   |   More Products By This Company

Images

Click on an image to see larger size image ...

Specifications

Details

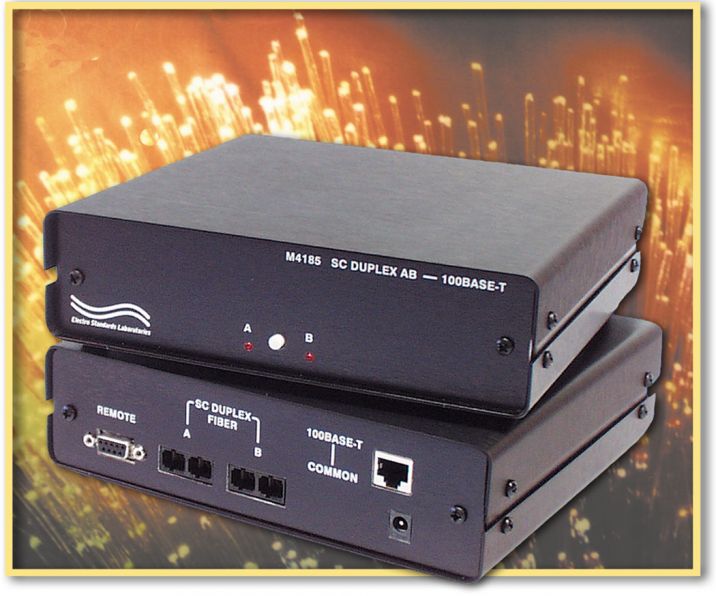

QuickSwitch® 4185 Fiber Optic SC Duplex, Multimode Switch / Converter allows the user the capability of accessing two separate fiber optic 100 Base FX ports (ports A and B) from a 100 Base TX Fast Ethernet port (Common port). The fiber optic / twisted pair copper conversion is built in! The unit is fully compliant with the 802.3u 100 Base TX/FX standard.

QuickSwitch® 4185 Features:

M4185 AB Switch/Converter allows access to two separate fiber optic 100 Base FX ports (A & B) from a 100 Base TX Fast Ethernet (COMMON) port.
Fully compliant with the 802.3u 100 Base TX/FX standard
Ports A & B are 1300nm, SC Duplex, Multimode, 100 Base FX fiber optic ports.
The COMMON port is a 100 Base TX Fast Ethernet port.
The selected fiber optic port will convert and pass data to and from the 100 Base TX COMMON port.
Internal circuitry insures isolation between the A & B devices/networks.
A great solution for conversion and fallback applications.
The unit includes an RS232 Serial security enhanced Supervisory Remote Port.
A front panel button changes the switch position eliminating the need to plug and unplug fiber patchcords thus minimizing connector wear. Switch position status is displayed on the front panel LEDs.

The unit also includes an RS232 serial security enhanced Supervisory Remote Port. Upon proper authentication, a terminal or computer in terminal mode connected to this port can communicate with the unit, determine its status, change the switch position as desired, and/or lockout front panel switching capability. A modem can also be connected to this port for remote access to the switch. Access to the Supervisory Remote Port feature is password protected. An optional graphical user interface (GUI) software is also available for use with a computer running Windows operating system.

Specifications:

PORT CONNECTORS: (2) SC Duplex fiber optic connectors labeled A and B. (1) RJ45 100 Base-TX COMMON.
FIBER OPTIC INTERFACE: 1300 nm, speed100 Mbps, multimode fiber, full duplex transmission, Fiber Size 62.5/125 micron.
FRONT PANEL CONTROL: (1) Pushbutton to select port A or B.
DISPLAY: (2) Red LEDs display switch position and indicate power presence.
SUPERVISORY REMOTE: (1) DB9 / female connector on rear panel accepts ASCII RS-232 Serial Data for Remote Control operation.
POWER: UL approved 115 VAC / 60 Hz wall mount power module supplies 12 VDC, 500 mA to the unit.
DIMENSIONS: Desktop: 7.5" W x 2.0" H x 7"D
WEIGHT: Approx. 2.8 lbs.
