Model 4127 HP Fiber to RS-485 Interface Converter with DB15 Connector

The Model 4127 HP Versalink Fiber to RS-485 Converter with DB15 converts RS-485/RS-422 serial communication interface to HP Versatile Link plastic core cable. The converters provide full galvanic isolation between connected devices.

Contact   |   Link To Product   |   More Products By This Company

Images

Click on an image to see larger size image ...

Specifications

Details

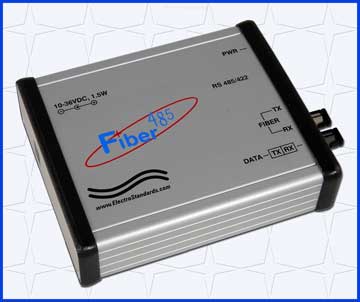

Fiber 485® Model 4127 HP Versalink Fiber to RS-485 Interface Converter from Electro Standards Laboratories.

ESL's Fiber Optic Converters Allow Connection of HP Fiber Optic Linked Terminals to RS-485 Port of Controller. The RS485 / HP Versalink Fiber Interface Converters are used to connect fiber optic linked terminals to a controller having an RS-485/RS-422 interface port. While RS485 is a versatile communication standard, able to communicate over long distances and at fast data rates, conversion to a fiber optic communication standard also allows data transmission that is no longer susceptible to electrostatic or electromagnetic fields. Additionally, the ports of the connected terminals are protected from damage by potential differences (ground variations) that often exist between them.

ESL's Fiber Converters are designed to support Casino / Gaming VLT Network Applications.

HP Fiber to RS485 Converter Features:
RS-485 / RS-422 connection via a DB-15 connector.
ESL's Media Converters convert RS-485/RS-422 Serial Communication Interface to HP Versatile Link plastic core cable.
Copper interface features ESD and Transient Voltage protection.
ESL's Fiber Optic Interface Converters provide full galvanic isolation (no metallic connection) between connected devices.
Full duplex connection between two devices having RS-422 ports.
Allows the interference-free fiber optical transfer of data to be utilized by the device having an RS-485/RS-422 interface.
Data transfer rate up to 1 Mbps.
Fiber connections via two standard Versatile Link connectors.
Configurable for use at DCE or DTE (specify with order).
Maximum Link Distance: greater than 500 meters (1640 feet) with 200 mm Hard Clad Silicon fiber cable.
Provided with external wall-mount power supply, UL approved.
This Fiber Converter is Ideal for casino data networks.

HP Fiber to RS485 Converters Specifications:
Data Transfer Rate: Up to 1Mbps
Fibre Transmission Distance: 75m (250 ft.) using TC 1000 W type plastic fiber cable.
RS-485/422 Transmission Data: Greater than 300 m (1000 ft.).
Optical Fiber Connectors: HP/Agilent Versatile Link
RS-485/RS-422 Connector:
DB-15 Female on Model 4127,
RJ-45 Female on Model 4129.
Optical Cable Type: 1mm plastic optical film.
Optical Wavelength: 660 nm (red).
External Power Supply: 120 VAC, 60 Hz.
Dimensions: 5.5" x 2.25" x 1.0" (139mm x 57mm x 25mm).
Weight: 0.5 lb. (226 grams).
Status Display: Red LED.
